Delivering industry leading dynamic performance in versatile 1 kN load frame.

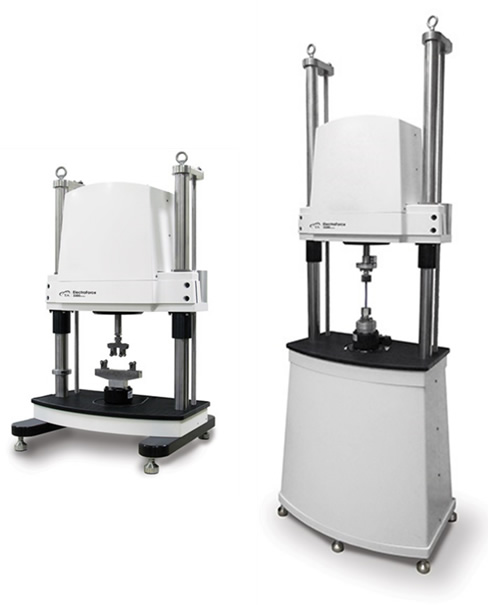

The ElectroForce 3310, the newest addition to the TA Instruments ElectroForce load frame family, delivers 1 kN of force capacity with 25 mm of dynamic displacement. Utilizing our patented, friction-free, electromagnetic linear linear motor, common among all of our test instruments, the 3310 provides the controllability you need to run a wide range of material characterization and fatigue testing protocols. Capable of running cyclic tests to 1,000 N, the ElectroForce 3310’s impressive performance extends to much lower forces, controlling applied force to less than 1 N. The 3310 also utilizes our High Accuracy Displacement sensor (HADS) which provides a calibrated displacement accuracy of ±5 microns and a resolution of 1 nanometer.
Expanding the performance envelope of the 3310, the test instrument can also be integrated with a torsion actuator which provides simultaneous axial-torsion loading. Alternatively, for static tests that require displacements that exceed 25mm, the 3310 can incorporate our extended stroke (ES) capability. In addition, environmental chambers such as saline baths or hot/cold chambers, can be used in conjunction with the 3310 to perform testing under a variety of test conditions.
3300 Series Spec Table
| Product Specifications | ElectroForce 3310 | ElectroForce 3330 |
| Force – Peak/Max Sine (N) | ± 1000 N | ± 3000 N |
| Force – Static or RMS (continuous) | ± 700 N | ± 2100 N |
| Displacement | 25 mm | 25 mm |
| Linear Velocity | 0.013 μm/s – 1.5 m/s | 0.013 μm/s – 2.0 m/s |
| Frequency | 0.00001 Hz – 100 Hz | 0.00001 Hz – 100 Hz |
| Torsional Motor Options | ||
| Standard Torque Option | ||
| Torque – Peak/Max | ± 14 N-m | ± 24 N-m |
| Torque – Static or RMS (continuous) | ± 14 N-m | ± 24 N-m |
| High Torque Option | ||
| Torque – Peak/Max | – | ± 49 N-m |
| Torque – Static or RMS (continuous) | – | ± 42 N-m |
| Rotation | Multi-Turn (± 10 revolutions Standard) | Multi-Turn (± 10 revolutions Standard) |
| Extended Stroke (ES) Option | ||
| Displacement | 150 mm | 150 mm |
