用于 Peltier 板的 上板

Peltier 上板 在进行室温外的测试时,温控相应迅速,精确度无与伦比。 说明特点技术应用Video 帕尔贴上板(Upper Peltier Plate, UPP) UPP 是一款针对室温外测试的重要的温控系统,温度响应迅速。当温度控制系统仅对样品的一侧进行控制时,甚至仅是在40℃下进行测试,温度测试偏差也可以上升到40%,并且测试偏差随着测试温度偏离室温越多而不断增大。将 UPP 与 Peltier 下板结合使用,可在 -40°C 至 200°C 范围内进行均匀而精确的温度控制,从而消除粘度、屈服应力、G’、G” 和 tan δ 等流变数据的测量误差。 UPP 是唯一一种基于 Peltier 的上板加热技术,可以直接对样品进行温度测量。该技术通过 TA 的专有技术主动温度控制 (Active Temperature Control, ATC)1 实现。此技术结合了 TA 的专有热扩散器技术2,将热量直接传导到样品,以实现最精确的温度控制和材料表征,从而满足各种测试需求。 (1) 美国专有号 (2) 美国专有号 特点和优势 专有热扩散器可将热量直接传导到样品上,从而使样品温度均匀,消除测量误差。 通过 Peltier 元件驱动的快速响应的温度控制,可提高生产力。 简单紧凑配置,工作温度范围广泛(从-40°C 到 200°C*),无需液氮或机械冷却器 使用专有 ATC 直接测量样品温度带来了无与伦比的热炉系统(ETC 和 FCO)数据重现性。 保护样品不受环境影响: 溶剂池选项:防止水性样品和挥发性样品的蒸发 热屏蔽:防止湿气凝结…

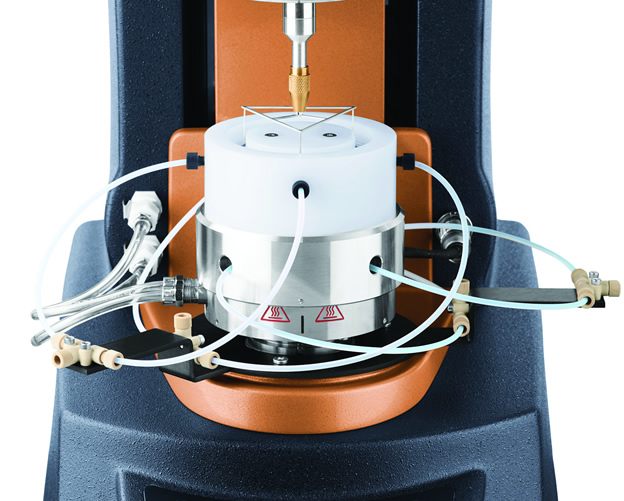

Interfacial Exchange Cell

Interfacial Exchange Cell Change subphase chemistry during interfacial rheology. DescriptionTechnologyApplicationsResources Interfacial Exchange Cell The Interfacial Exchange Cell expands TA Instruments’ patented offerings for interfacial rheology by providing the ability to directly manipulate the composition of the lower liquid layer (subphase) during rheological measurements. This unique capability enables the characterization of the interfacial response to a…

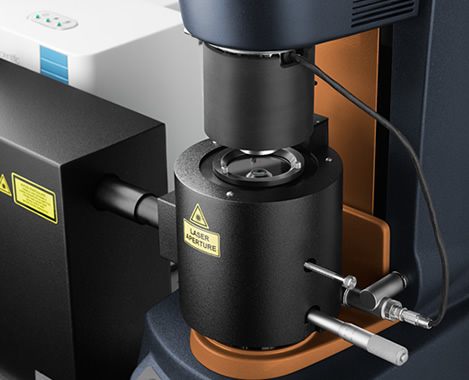

Rheo-Raman Accessory

Rheo-Raman Accessory Simultaneous Rheology & Raman Spectroscopy for the Discovery Hybrid Rheometer. DescriptionFeaturesApplications Rheo-Raman Accessory The new Rheo-Raman Accessory for the Discovery Hybrid Rheometers allows for simultaneous collection of Raman spectroscopy data during rheology experiments. Raman spectroscopy is a technique that provides critical information about molecular structure and bonding and can elucidate intermolecular interactions of…

Dynamic Mechanical Analysis

Dynamic Mechanical Analysis (DMA) The DMA Mode adds a new dimension for testing of solid and soft-solid materials. DescriptionSpecifications & FeaturesApplications Dynamic Mechanical Analysis (DMA) The DMA Mode adds a new dimension for testing of solid and soft-solid materials. Now in addition to the most sensitive and accurate rotational shear measurements, the Discovery Hybrid Rheometer…

Starch Pasting Cell

Starch Pasting Cell (SPC) Provides a more accurate and powerful tool to characterize the gelatinization of raw and modified starch products, as well as the properties of the starch gels. DescriptionTechnologyFeaturesApplications Starch Pasting Cell (SPC) The Starch Pasting Cell (SPC) provides a more accurate and powerful tool to characterize the gelatinization of raw and modified…

Immobilization Cell

Immobilization Cell Permits the characterization of drying, retention, and immobilization kinetics of paints, coatings and slurries. DescriptionTechnologyFeaturesApplications Immobilization cell The new Immobilization Cell Accessory for the Discovery Hybrid Rheometer permits the characterization of drying, retention, and immobilization kinetics of paints, coatings and slurries. Solvent is dewatered from the sample through a paper substrate affixed to…

Dielectric Measurement

Dielectric Measurement Extends material characterization capabilities by providing an additional technique similar to dynamic mechanical. DescriptionTechnologyFeaturesApplications Dielectric Measurement The Dielectric Accessory, available for all DHR models, extends material characterization capabilities by providing an additional technique similar to dynamic mechanical. In dielectric analysis, an oscillation electrical field (AC Field) is used as opposed to mechanical force…

UV Curing Accessories

UV Curing Accessory uses a light guide and reflecting mirror assembly to transfer UV radiation from a high-pressure mercury light source. DescriptionTechnologyApplications UV Curing Accessories UV-curable materials are widely used for coatings, adhesives, and inks. When these materials are exposed to UV radiation, a fast cross-linking reaction occurs, typically within less than a second to…

Electro-Rheology

Electro-Rheology Provides the ability to characterize ER fluids up to 4,000 volts using either parallel plate or concentric cylinder geometries. DescriptionFeaturesApplications Electro-Rheology Accessory (ER) Electro-Rheological, or “ER”, fluids are suspensions of extremely fine non-conducting particles in an electrically insulating fluid. These materials show dramatic and reversible rheological changes when the electric field is applied. The…

Magneto-Rheology

Magneto-Rheology Enables the complete characterization of magneto-rheological fluids under the influence of a controlled field. DescriptionFeaturesTechnologyApplications Magneto-Rheology The new MR Accessory enables the complete characterization of magneto-rheological fluids under the influence of a controlled field. Applied fields up to 1 T and a sample temperature range of -10 °C to 170 °C make the MR…

Tribo-Rheometry Accessory

Tribo-Rheometry Enables the capability to make coefficient of friction measurements between two solid surfaces under dry or lubricated conditions. DescriptionFeaturesTechnologyApplications Tribo-Rheometry Tribology is defined as the study of interacting surfaces undergoing relative motion. The new Tribo-Rheometry Accessory, available for all DHR models, enables the capability to make coefficient of friction measurements between two solid surfaces…

Interfacial Accessories

Interfacial Rheology A patented range of tools for measuring rheology and viscoelasticity of air-liquid and liquid-liquid interfaces. DescriptionApplicationsTechnology Interfacial Accessories Rheometers are typically used for measuring bulk or three-dimensional properties of materials. In many materials, such as pharmaceuticals, foods, personal care products and coatings, there is a two-dimensional liquid/liquid or gas/liquid interface with distinct rheological…
