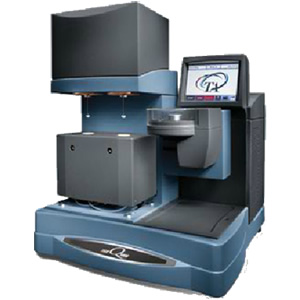

The new automated Q5000 SA is designed for high performance sorption analysis of materials under controlled conditions of temperature and humidity. Its design integrates our latest high sensitivity, temperature controlled thermobalance with an innovative humidity generation system, advanced multi-position autosampler, and powerful Advantage software with technique specific programs. The Q5000 SA delivers the performance and reliability required in a leading sorption analyzer and in a compact, user-friendly design.
| Thermobalance temperature controlled | Included |
| Weight Range | 0.1 g (nom) |
| Weighing Accuracy | ±0.1% |
| Weighing | ±0.01% |
| Sensitivity | < 0.1μg |
| Baseline* | < 5μg |
| Signal Resolution | 0.01μg |
| Temperature Control | Peltier Elements |
| Temperature Range | 5 to 85°C |
| ±Isothermal Stability | ±0.1°C |
| Relative Humidity Control Range | 0 to 98% RH |
| Accuracy | ±1% RH |
| Autosampler — 10 samples** | Included |
| Sample Pans | Quartz 180µL |
| Platinum 50, 100µL | |
| Aluminium Sealed Pan 20µL |
* Over 24 hour at 25°C and 20% RH with quartz pans
** Optional tray accommodates 25 samples for use with platinum and sealed aluminium pans
mouse over the
icons for details.

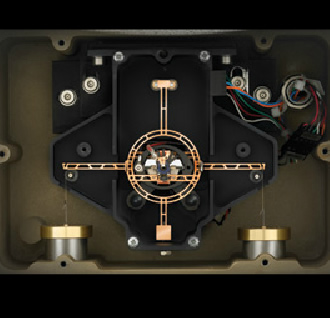

Thermobalance
- Ultra sensitive thermobalance
- Superior baseline stability

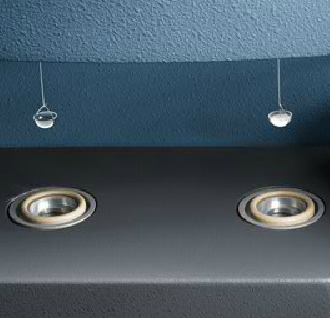

Humidity Control Chamber
- Uniformed atmosphere within the sample and reference chambers
- Precise and accurate humidity control over a broad range

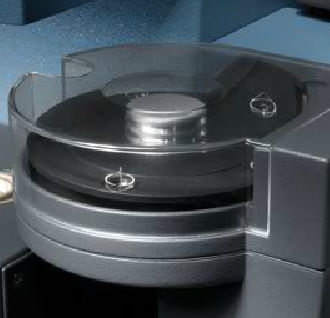

Autosampler
- Multi-position sample carousel that allows automated analysis of up to 10 samples
- Fully automated testing procedures
Baseline Stability
Exceptional Baseline Stability
Sensitivity
Sensitivity
